Fibertec™ 1023

The Fibertec™ 1023 is designed for rapid determination of dietary fibre according to established enzymatic methods, including those approved by AOAC, AACC, NMKL and Asp. Includes a filtration module and a shaking water bath for quantitative determination of dietary fibre.

See how it works
Fibertec 1023
Value Icon

Value

All that you need for efficient batch analysis in one system including a filtration module and a shaking water bath for quantitative determination of dietary fibre.
Sample Icon

Sample type

Food and food ingredients.
Parameter Icon

Parameters

Total Dietary Fibre (TDF), Insoluble Dietary Fibre (IDF) and Soluble Dietary Fibre (SDF).

Want to know more about applications?

Talk to one of our experts about available applications for Fibertec™ 1023. Get a quote Let's talk

Features

  • A complete system

    The system includes a filtration module and a shaking water bath for quantitative determination of dietary fibre in a variety of sample types. The filtration module filters and collects six sample solutions and the shaking water bath incubates 12 samples in each batch.

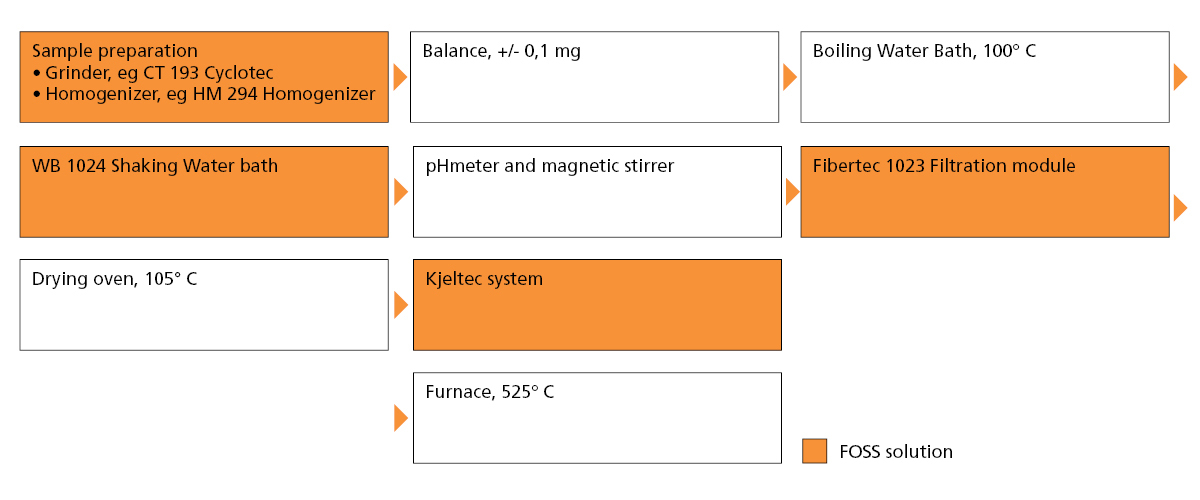

  • Equipment needed

    For the determination of dietary fibre, the following equipment is needed and all items in the orange boxes can be ordered from FOSS.

  • Rapid dietary fibre analysis

    The Fibertec™ 1023 is designed for rapid and rational determination of dietary fibre according to established enzymatic methods, including those approved by AOAC, AACC, NMKL and Asp.


Looking for a solution for determination of indigestible protein as part of the dietary fibre method?

Read more about the Kjeltec solutions for protein determination. Learn more

Technical specification

Performance data

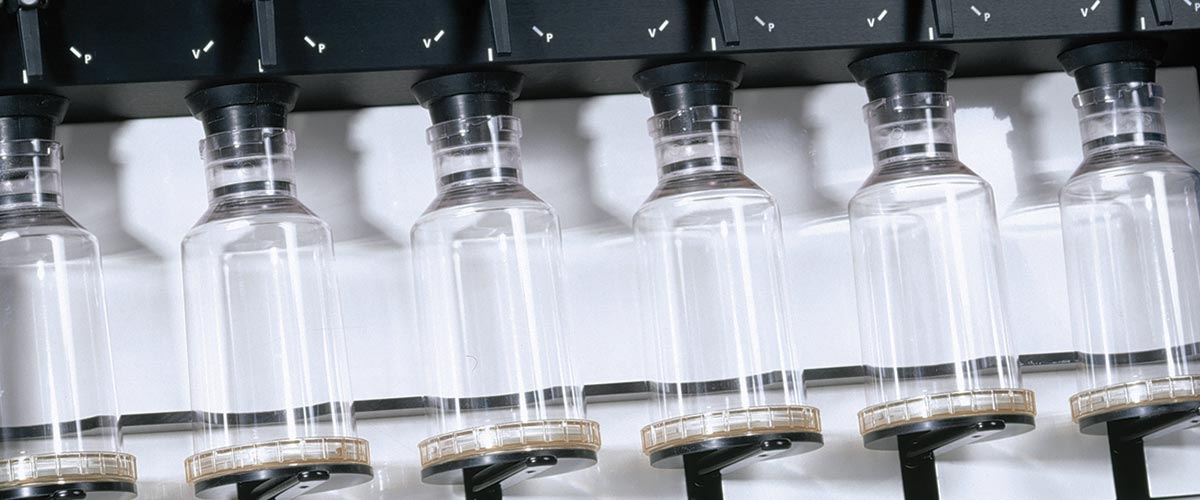

Filtration Module
Filtration and dehydration capacity 6 samples/batch.
Filtration rate 2 – 4 minutes/100 ml of digested solution, depending on sample type.
Repeatability SD <0.5% absolute
Flask volume 600 ml
Accuracy According to official methods

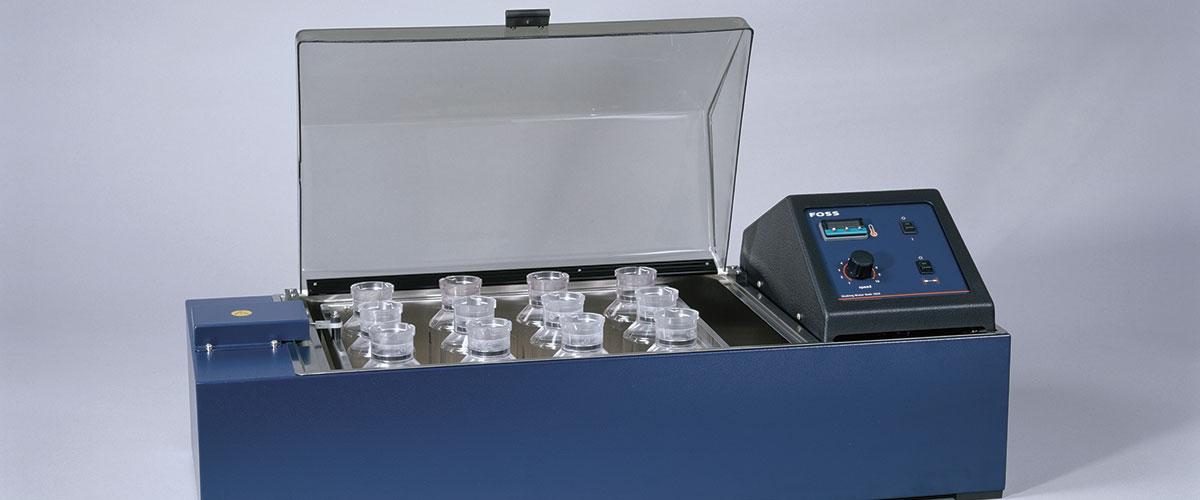

WB 1024 Water Bath
Capacity 12 flasks
Temperature range Ambient to 80 °C
Temperature accuracy ±0.1°C
Shaking frequency 0 – 150 strokes/minute
Stroke length 0 – 50 mm
Installation requirements
Power supply 210 – 230 V 50 - 60 Hz
Power consumption 8 W Filtration module 1500 W WB 1024 Water Bath
Water supply 2 pcs. tap water and sink for water aspirator.
Weight net

FibertecTM 1023

24 kg

WB 1024 Water Bath

24 kg

Dimensions (W×D×H) 770 × 280 × 500 mm 890 × 370 × 320 mm


 24 kg
 24 kg
