Kjeltec™ 8100

This Kjeldahl distillation unit provides a simple and reliable solution for safe, semi-automated distillations according to the global reference method.

Kjeltec 8100
Value Icon

Value

Free-up lab resources and improve test throughput with semi-automated distillation that is safe, simple and reliable and according to official standards.
Sample Icon

Sample type

Food, feed, feed ingredients, forage, pet food, grain, cereal, oil seeds, meat, meat products, milk, dairy products, beer and beer ingredients.
Parameter Icon

Parameters

Nitrogen, protein, Non Protein Nitrogen (NPN) and volatiles (SO2, TVBN and more).

Are you ready to discuss what capacity and level of automation is relevant for your laboratory?

Get in touch with our specialists to discuss your potential business value with no strings attached. Get a quote Let's talk

“Now we can handle more samples and get the results earlier with less work”

Learn how Denofa soya crushing plant in Norway have achieved more consistent results with automated Kjeltec™, while saving time and labour.

Features

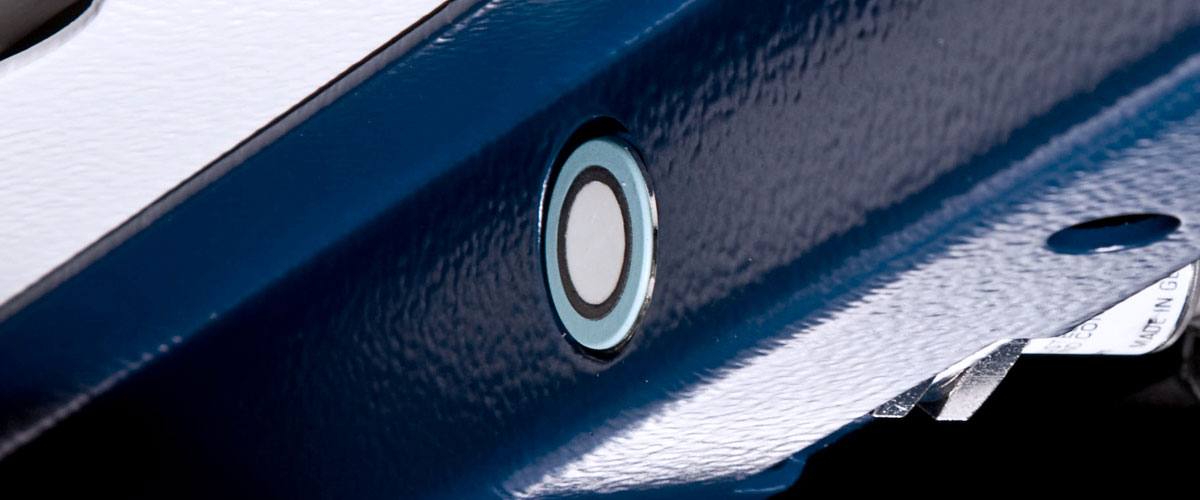

  • Safety features

    A fast tube draining system removes the need for handling hot reagents after distillation. Interlocked safety door which must be closed with a tube in place before the unit will operate. Cooling water flow is controlled automatically and a temperature sensor stops the unit if the distillate is too hot. Sensors monitor tube in place, safety doors, reagent levels, water level and over-pressure in the steam generator providing safe use.





  • SAfE

    The patented SAfE* technology improves safety by a mixing procedure, reducing the exothermic reaction between alkali and acid during distillation and removing the need for manual pre-dilution.

     *Steam Addition for Equilibration

Overview of Kjeltec™ models

The Kjeltec™ series consists of four models: Kjeltec™ 8100, 8200 and 8400 and KT 200 Kjeltec™ with different levels of automation.

200 8100 8200 8400
Variable output steam generator  x  x  x
Water saving system  x  x  x
Cooling water flow control  x  x  x
Distillate temperature monitor  x  x  x
Polypropylene splash head x  x  x  x
Polypropylene tube emptying vessel x  x  x
Bellows pumps for reagent addition x  x  x  x
Automatic alkali addition x  x  x  x
Automatic dilution water addition

 x  x  x
Automatic receiver solution addition    x  x
SAfE - Steam Addition for Equilibration x  x  x  x
Tube emptying/Waste collection  x  x  x
Reagent alarms  x  x  x
Removable drip tray x  x  x  x
Automatic safety door    x  x
Interlocked safety door  x  x  x
Removable safety door  x  x  x
Tube-in-place safety  x  x  x
Tube replacement sensor  x  x  x
Colorimetric titration system    Opt.  x
External titrator connection    Opt.  Opt.
Interchangeable burette      x
Titration bypass      x
Results calculation      x
Storage of raw data in instrument      40 batch
Data management PC software      x
Storage of raw data with PC software      Unltd
Ethernet connection for PC      x
Balance      x
Printer      x
Autosampler system 8420 or 8460      Opt.

Technical specification

Performance data
Analysis time 3.5 minutes at 30 mg N (6.5 minutes at 200 mg N)
Distillation capacity ~ 40 ml/min
Measurement range  0.1 – 200 mg N
Reproducibility  1% RSD (including the digestion step)
Recovery  > 99.5% at nitrogen levels between 1 – 200 mg N
Installation Requirements
Power supply
200 – 240 V 50 – 60 Hz
Tolerable voltage variation
± 10 %
Power consumption
2 200 W
Water consumption

(during distillation only) 3 l/min at water temp of 25°C *1 l/min at water temp of 15°C
* Circulating Cooler recommended at >25°C

Weight
35 kg
Dimensions (W x D x H)
480 × 580 × 690 mm

Technical
Technical
Technical
Technic
35 kg
Dimensions (W x D x H
