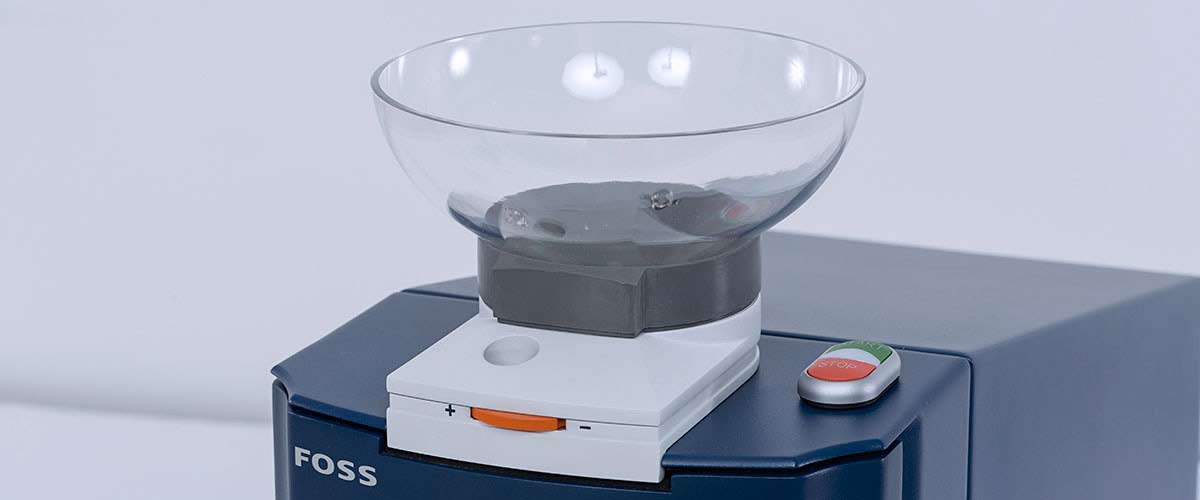

Hammertec™

This hammer type mill is specially designed for sample preparation for falling number, gluten index and other reference analysis methods. Built with a focus on the user, the Hammertec is smaller and lighter and designed to make hammer mill operations quieter by at least 1.5 dB compared to existing solutions.

See how it works
Value Icon

Value

A quieter hammer mill for a safer and more pleasant working environment.
Sample Icon

Sample type

Dry, flowable whole cereal grain samples: Common wheat, common rye, durum wheat and barley.
Parameter Icon

Parameters

Sample preparation.

Want to know more about FOSS sample preparation solutions?

Get in touch with our specialists to discuss your potential business values with no strings attached. Get a quote Let's talk

Features

  • Innovative design helps to minimise sample carry-over

    Crushes samples, such as grains, feeds and meals, into a fine and homogenous powder via high speed rotation of a hammer by which the sample is impacted. Innovative design helps to minimise sample carry-over, ensuring more accurate results.

  • Follows key requirements of AACCI/ICC/ISO methods


    AACCI: Sample mill, with 0.5- or 0.8-mm screen to produce meal with particle size distribution as follows: >500 μm, 0–10%; >210 but <500 μm, 25–40%; <210 μm, 75–50%.

    ISO: Laboratory mill, hammer type, and fitted with a 0,8 mm screen allowing the production of a wholemeal product meeting the particle size specification shown in 8.1.3.

The FOSS Mill Collection

The FOSS Mill Collection consists of four models: the CM 290 Cemotec™, CT 293 Cyclotec™, KN 295 Knifetec™ and Hammertec™ for flexible and safe sample preparation.

Alphatec™ FNo.

Falling number test for sprouting damage in grain and enzyme activity in flour.

Alphatec™ FNo. gives grain receivers a safe and modern way to perform the standard falling number test. Features include a cooling lid to avoid a rush of steam when loading samples and a touch screen interface.

Read more

Technical specification

Products measured and product presentation
Dimensions (w x h x d)
 24 x 38 x 55 cm (without Auto-feeder)
24 x 52 x 55 cm (with Auto-feeder)
Weight, operating: 40,6 kg
Power requirements
 200-240 VAC 50/60 Hz or 100-120 VAC 50/60 Hz
Power consumption
 1300 W
Thermal overload relay  200 - 240 VAC, 7 A
100 - 110 VAC, 14 A
Motor rotation speed
 2800 rpm (50Hz)
3400 rpm (60Hz)
Hammer speed
 16800 rpm
Safety brake  Yes
Noise level  < 80 dB
Transient overvoltage

2
Temperature
 Indoor use, 5-40° C
Relative humidity  Maximum relative humidity 80% for temperatures up to 31° C decreasing linearly to 50% relative humidity at 40° C
Pollution degree  2
