FT 122 Fibertec

FT 122 Fibertec™

The FT 122 Fibertec™ is a manual fibre determination system for simple determination of Crude Fibre, Detergent fibre and more, according to standard reference crucible methods such as Weende, van Soest etc.

See how it works
Fibertec 121 122
Value Icon

Value

An easy way to secure consistent analytical results with repeatable determination of fibre content according to Weende, van Soest and other recognised methods.
Sample Icon

Sample type

Feed, Feed ingredients, Forage, Pet food, Grain, Cereal and Oil seeds
Parameter Icon

Parameters

Crude Fibre (CF), Neutral Detergent Fibre (NDF), Acid Detergent Fibre (ADF) and Acid Detergent Lignin (ADL)

Are you ready to discuss what capacity and level of automation is relevant for your laboratory?

Get in touch with our specialists to discuss your potential business value with no strings attached. Get a quote Let's talk

Features

  • FT 121 Fibertec FT 121 Fibertec

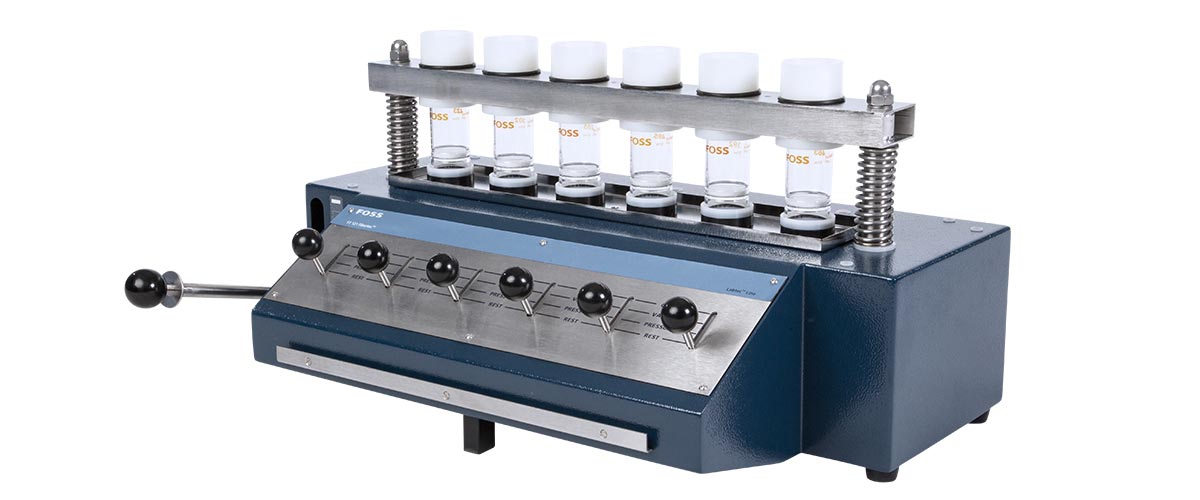

    The FT 121 Fibertec™ Cold Extraction Unit

    In addition we offer the FT 121 Cold Extraction Unit. It can be used in combination with the FT 122 for de-fatting samples and extraction at ambient temperatures and solvent dehydration of fibre residues. It can also be used in connection with the fully automated Fibertec 8000.
  • Accessories for FT 122 Fibertec Accessories for FT 122 Fibertec

    Batch handling tools

    Batch handling tools improve operator safety when handling hot crucibles, processing up to 6 samples at a time.

  • Cups for FT 122 Fibertec Cups for FT 122 Fibertec

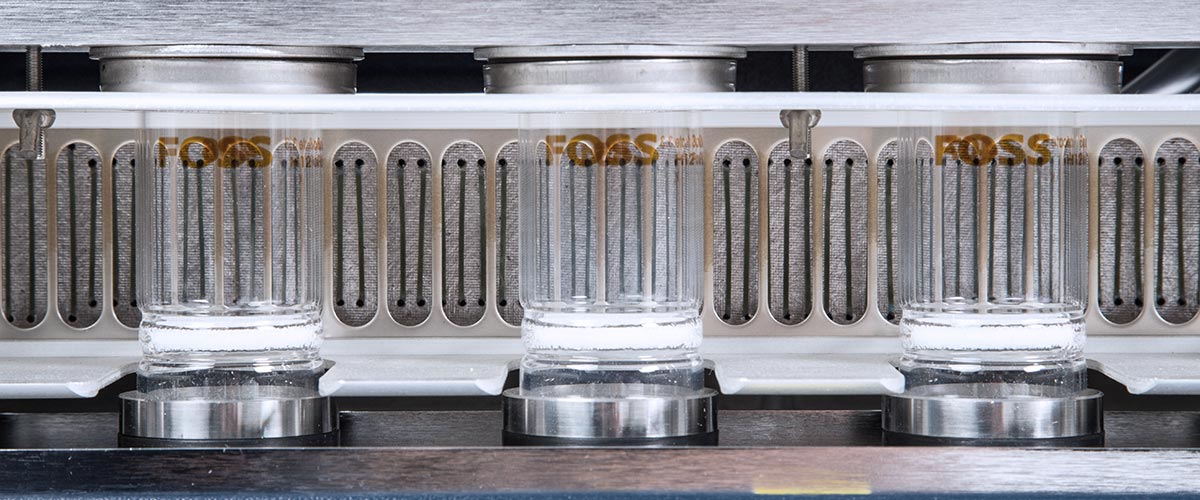

    Crucible system

    Both units, FT 121 and FT 122 Fibertec™, are adapted to the same crucible system that permits the sample, whenever required, to be dried and weighed between extractions. In the system the samples are handled in specially designed filter crucibles, which are used both as an integral part of an extraction assembly during extraction, rinsing and filtering, and as a sample vessel during the weighing, drying and ashing steps.

The Fibertec™ series

The Fibertec™ series consists of three models: the Fibertec™ 8000 and FT 122 Fibertec™ with different levels of automation.

  Fibertec™ 8000 FT 122 Fibertec™
Level of automation Fully automated Manual
Positions 6 6
Capacity/day 36 36
Sample holder Glass crucible Glass crucible

Cows eating

Global Standard for the Determination of ADF and Lignin

Understanding detergent fibre as an indicator of digestibility. For a number of years, livestock nutritionists have been using ADF and NDF as indicators of dietary energy and intake, especially for ruminant rations. This article discusses why these fibre fractions have replaced crude fibre ration formulations in many parts of the world.

Read more

White Paper: Why do I need to follow the official methods for fibre analysis?

White Paper: Why do I need to follow the official methods for fibre analysis?

Comparing fibre methods White Paper frontpage
Although alternative methods may be faster and allow higher samples volumes to be run, the adherence to official methods is mandatory in cases of dispute and for labeling purposes. This White Paper gives an overview of different fibre determination methods.

Something went wrong!

Sorry, we were not able to send your form.

Technical specification

Performance data

Sample size 0.5 – 3g
Measuring range 0.1 % - 100 %
Capacity per batch Up to 6 samples
Capacity per day Up to 36 analysis (Crude Fibre method)
Repeatability ± 1 % relative at 5 % - 30 % fibre level
Accuracy According to reference methods
Installation requirements
Power supply 200 – 230 V ± 10 %  50/60 Hz
Power consumption 1000 W
Water supply

FT 122 Hot extraction unit: Tap water for condensers  approx 2 l/min and water aspirator (during filtration)

FT 121 Cold extraction unit: Tap water 2 l/min

Weight net

FT 122 Fibertec™

28kg

FT 121 Fibertec™

14kg

Dimensions (W×D×H) 560 × 380 × 570 mm 560 × 380 × 280 mm

Technical
Technical

 200 – 230 V ± 10 %  50/60 Hz
 200 – 230 V ± 10 %  50/60 Hz

 14 kg
 14 kg

Brochures and Papers

FT 122 Fibertec™ Brochure

PDF, English

Laboratories Segment Brochure

PDF, English
