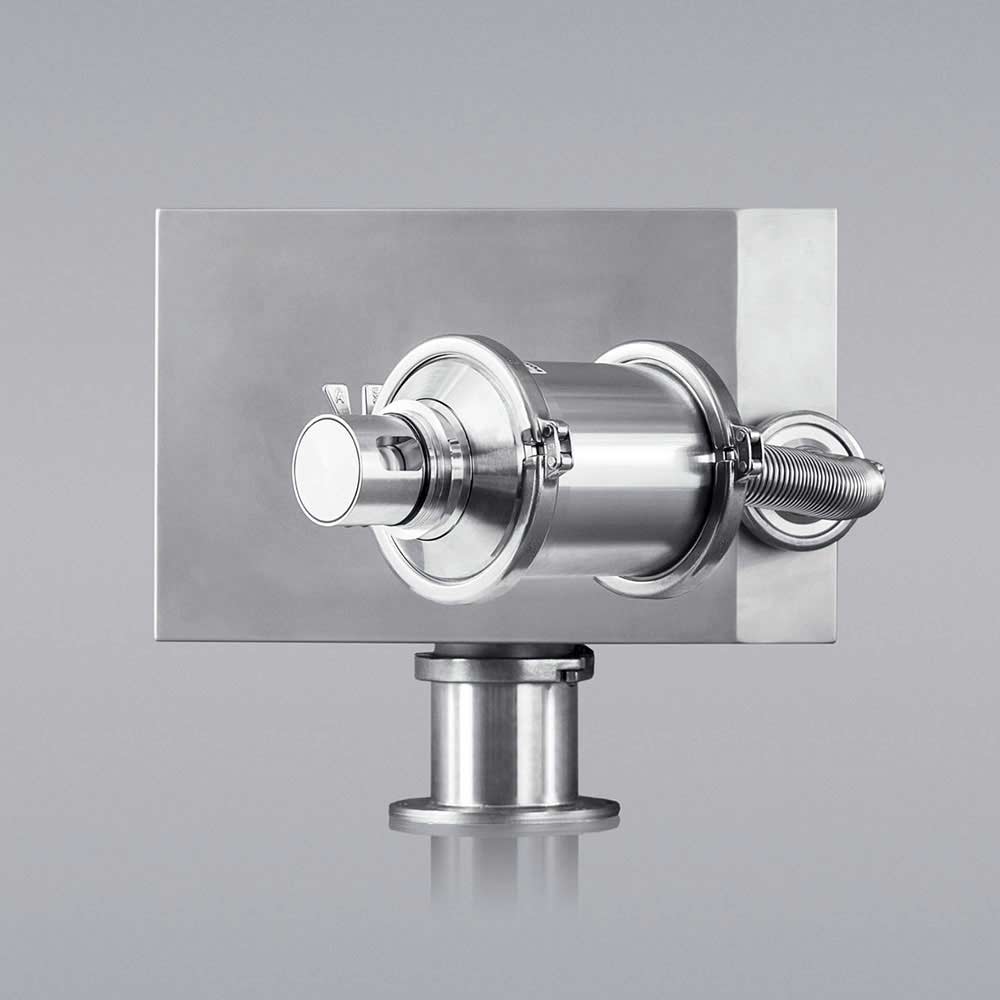

MilkoStream

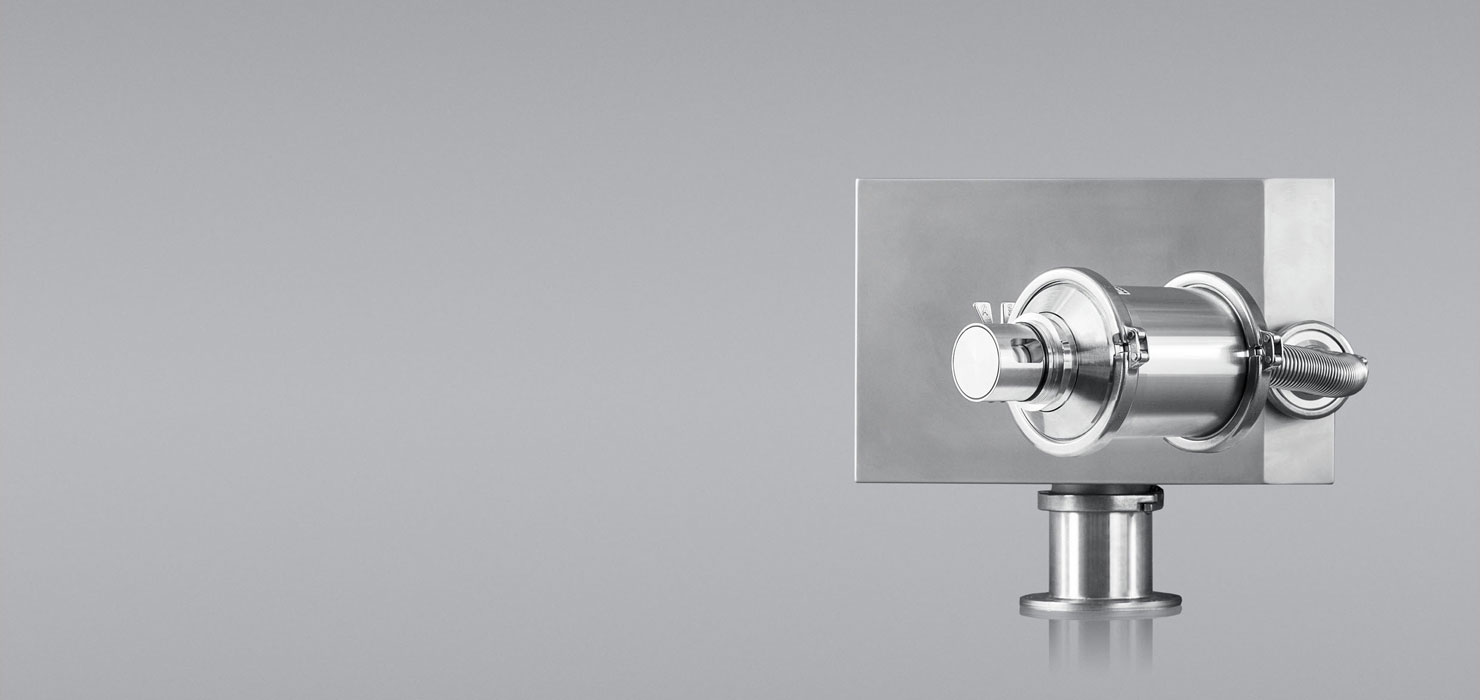

MilkoStream™ FT

MilkoStream™ is the world's first true in-line milk standardisation analyser. Test five key components of liquid milk directly in the dairy process line to improve the efficiency of your milk standardisation by more than 20%, while raising both yield and product quality.

See how it works
MilkoStream FT
Value Icon

Value

Optimal standardisation of milk for cheese and dairy powder. Improve consistency and profitability. Uses the best analytical technology for liquid samples, Fourier Transform Infrared (FTIR).
Sample Icon

Sample type

Cheese and Powder milk
Parameter Icon

Parameters

Fat, Protein, Lactose, Total Solids and Solids non fat

Are you ready to learn what in-line milk standardisation can do for you?

Get an obligation free analysis about profit and quality improvement opportunities for your specific production. Get a quote Let's talk

“We’ve got consistent data coming in to tell us exactly what our system is doing, which in turn is going to make us a lot more consistent"

Plant Manager, Nathan Bass from Valley Queen explains how installing the MilkoStream™ directly in the cheese process has dramatically improved their product consistency due to incoming data every 7 seconds.

Features

  • MilkoStream FT - Dynamic Diamond Probe MilkoStream FT - Dynamic Diamond Probe

    Dynamic Diamond Probe

    The FOSS patented in-line Dynamic Diamond Probe™, DDP™, performs dynamic reference samples after CIP, eliminating the need for Zero setting.

    The dynamic reference standardisation performed by the MilkoStream™ effectively allows FTIR analysis on milk directly in the process pipe.

  • Standardisation Standardisation

    Optimal standardisation with FTIR technology

    Reduce production variation
    Move production target closer to specification
    Consistent products
    Increase profit


Why FTIR for liquid milk analysis?

Expert interview will help you to understand the best uses for near infrared (NIR) and fourier transform infrared (FTIR) and why the latest technology within in-line FTIR is the ultimate solution for liquid milk analysis.

Technical specification

Technical Specifications
Technology Fourier Transform Infrared Spectroscopy (FTIR)
Calibration Milk: Fat, Protein, Lactose, Total solids and Solids non fat (SNF)
Calibration range 0 - 6 % Fat
3 - 13 % Protein
3 - 6 % Lactose
9 - 20 % Total solids
9 - 18 % Solid non fat
Accuracy Fat, Protein SEP: 0.05 %
Total solids, SNF, lactose SEP: 0.10 %
Repeatability (Sr) Fat, Protein: 0.015 %
Total solids, SNF, lactose: 0.05 %
Product temperature 2 - 8 °C or 2 - 40 °C
Analysis time 7 sec.
Average result is flexible e.g. 30 seconds or number of samples
Protection class IP66
Water supply (if ambient temp. ≥30 °C) Temperature: 2 - 25 °C
Flow rate: 12 - 60 liters per hour
Connection: 3/8”
Pressurised air  In accordance with ISO 8573.1: 2010: solid particle Class 2,
Humidity Class 2, Oil Class 1
Flow 300 liters/hour
Connection: ID4/OD6 PU hose
Electrical supply 1 phase, 100-240 VAC ±10%, 50-60 Hz 300W
Humidity
< 93 % RH
Pipe dimension Equal or greater than, DN 50, OD 2 1/2”,IPS2 or ISO 60,3
Pipe pressure
Max. 10 bar static
Ambient conditions 5 - 30 °C (without water cooling)
5 - 43 °C (with water cooling)
Vibration level of Varinline Access Unit interface
Maximum level: 0,35 grms between 200-2000 Hz.
Sensitive frequency ranges: 380-460 Hz and 700-750 Hz.
The rms value should not exceed: 0,02 grms
CIP temp Up to 95 °C
Dimension WxHxD: 255 x 485 x 353 mm
Weight Cabinet: 24.3 kg Probe: 12.5 kg
Network connections LAN - Ethernet Cat. 5e 4 x 2 x 26 AWG
Hygiene conformance 3-A sanity standards, EHEDG
Technical
Technical

Brochures and papers

MilkoStream™ FT brochure

PDF, English

Dairy Segment Brochure

PDF, English
