Infratec 1241 - grain analyser

Infratec™ 1241 Grain Analyser

The 3rd generation Infratec™ 1241 is the world’s most widely used grain analyser. Based on 60 years of experience, Infratec™ is recognised by the global grain industry as the trusted method for grain analysis.

See how it works
Infratec 1241 - Grain analyser
Value Icon

Value

The global standard in grain analysis with a calibration database covering more than 20 years of harvest. Reliable even in a harsh environment
Sample Icon

Sample type

Barley, Wheat, Corn and other cereals, oilseeds, beans and pulses.
Parameter Icon

Parameters

Moisture, Protein, Oil, Test Weight, Starch, Wet Gluten, Fibre, Ash and many more.

Find out why 80% of all wheat traded globally is tested on an Infratec™

Get in touch with our specialists to discuss your potential business value with no strings attached. GET A QUOTE Let's talk

How to control and segregate grain quality for the best possible price

Learn how DanFarm, Slovakia are reaping the benefits of on-farm grain analysis by implementing two Infratec™ grain analysers for efficient segregation and quality control. Read article
Tractor

Features

  • ANN Software ANN Software

    ANN - A global industry needs global calibrations

    The huge Infratec™ database comprises over 50.000 cross checked samples, PLS and robust ANN-based calibrations building on a wide sample range from many years of harvests. This gives a level of accuracy and stability that enables Infratec™ to test even the most unusual samples anywhere in the world.
  • Mosaic Software Mosaic Software

    MOSAIC™

    The MOSAIC™ concept is based on centralised configuration, support and surveillance. All you need to do is run samples and leave the rest to FOSS or your own central team of specialists.

    Completely independent Mosaic™ networks can also be set up and managed by customers wanting to take the advantage of Mosaic™ software without the added services from FOSS. This eliminates complexity at instrument level and allows a specialist to monitor and manage remote instruments. Automated Surveillance alerts and new reporting options ensure that each part of the analysis process is monitored, managed and optimised at a level of detail and accuracy not previously possible.

  • Harvest Harvest

    Established standard worldwide

    Infratec™ is officially approved and established worldwide as the standard for determining Protein, Moisture, Oil and Starch. Its accurate and reliable results help you to deliver consistent quality.

    With Infratec’s patented stabilising technique, you get correct results whatever the weather. For instance, Protein is predictable to within 0,1% and it can be measured in temperatures ranging from -4°C to +40 °C.

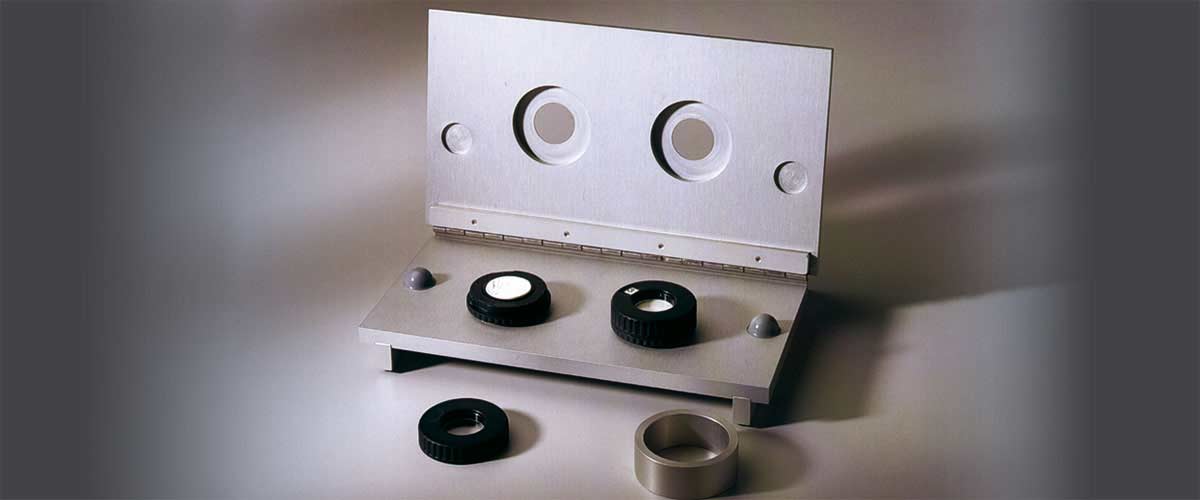

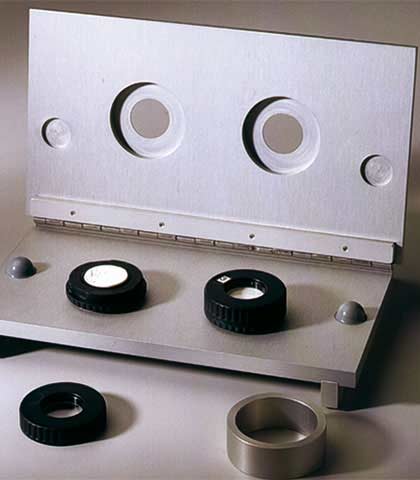

  • The flour module in the Infratec 1241 The flour module in the Infratec 1241

    Expand capabilities with additional modules

    The Infratec™ 1241 is part of a modular system that includes a Flour module, a Test Weight module and a Sample Transport module to test small samples, wet samples and liquids.

Since the Infratec™ was introduced in 1987 it quickly became the benchmark for grain analysis trusted to facilitate billions of dollars worth of fair grain trade every year.

Intratec

White Paper: Learn why rapid analysis with FOSS is superior to the reference method

White Paper: Learn why rapid analysis with FOSS is superior to the reference method

ANN White Paper frontpage
The FOSS NIR calibration is now a global standard for measuring Protein and Moisture in whole grain of wheat and barley.

Something went wrong!

Sorry, we were not able to send your form.

Technical specification


Feature Specification
Dimensions (W x D x H) 500 × 570 × 400 mm
Weight 30 kg
Voltage 220-240V 50-60Hz or 110-120V
Rated current 1.0A (110-120V) / 0.5A (220-240V)
Spectrometer  Scanning monochromator
Wavelength range 570 - 1100 nm
Detector Silicon
Optical bandwidth 7 nm
Number of data points/scan 265
Mode Transmittance
Light source Tungsten halogen lamp
Detector Silicon
Storage Media Flash disk, USB memory stick
Display 640 × 480 TFT LCD

Sample handling and result presentation
Analysis time
50 seconds for 10 sub-samples
Path length Variable cell automatically controlled from 6 - 33 mm
Result report Presented on the display as default. Can be sent to PC/LIMS and the printer port
Outlier function Warnings and options for the presentation of the result
Software Menu driven
Regression programs
ANN (Artificial Neural Network); PLS (Partial Least Squares)
No. of sub-samples 1 - 20

Operation Data

Software Menu driven
Regression programs
ANN (Artificial Neural Network); PLS (Partial Least Squares)
No. of sub-samples 1 - 20
PATENTED METHOD - US PATENTS; US 4,944,589 AND EUROPEAN PATENTS; EP 0 320 477 B1, 8704886-4.


Optional Modules
• Flour Module
• Test Weight Module
• Sample Transport Module

Support Software
• Infratec™ File Tool, 1241
• WinISI™ 4, Calibration Development Software
• Infratec™ Scan Predictor
• Infratec™ DataLogger (included with instrument)
• FOSS DataLink
• MOSAIC internet network software

For support and administration of Infratec systems operated in networks, contact FOSS Analytical for further information.

Interface
Printer: 25 pin parallel port
Modem: 9 pin serial port
External PC: 9 pin serial port
LAN: RJ45
Keyboard/Barcode: PS/2
USB Ports: 2 pcs
Remote I/O: 15-pin High Density DSUB
Diagnostics: Self tests for internal communication,
monochromator and detector (offset,
gain and noise)
System protection: Dust and humidity protected
