Dumatec

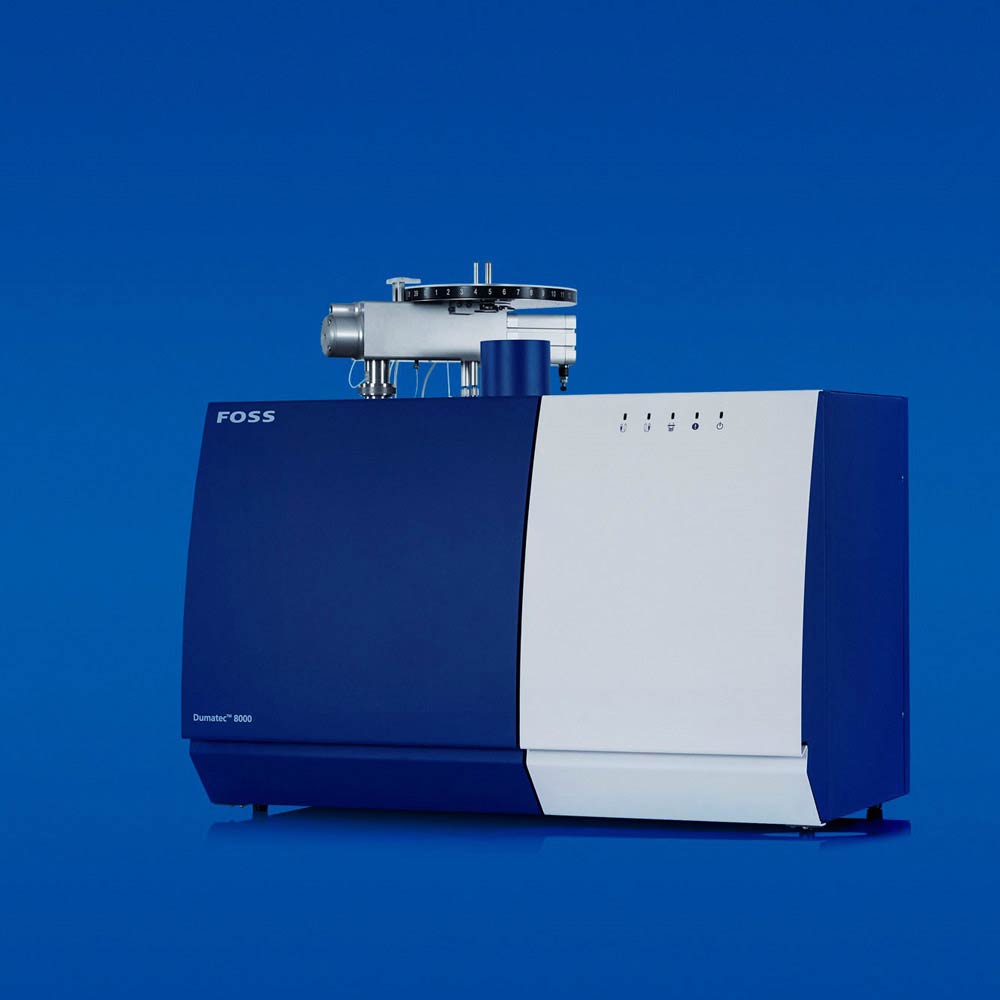

Dumatec™ 8000

Dumatec™ 8000 gives busy laboratories reliable Dumas results in just three minutes at a low cost per sample. Reduced start-up time, extended consumable lifetime and full traceability with integrated software.

See how it works
Dumatec
Value Icon

Value

Automated Dumas analysis for quality control in food and feed laboratories. Full control of your data with remote surveillance option.
Sample Icon

Sample type

Feed, feed ingredients, forage, pet food, grain, cereal, oil seeds, meat, meat products, milk, dairy products, beer and beer ingredients.
Parameter Icon

Parameters

Nitrogen and protein.

Are you ready to learn how integration of Dumas in your instrument network can improve uptime?

Get in touch with our specialists to discuss profit and quality improvement opportunities for your analytical needs. Get a quote Let's talk

Features

  • Reliable Dumas with reduced work

    Free your laboratory resources. With Dumatec™ 8000 removal of CO2 is done automatically with the patented self-regenerating adsorption trap within a six position carousel.

  • Disc system Dumatec
    Dumatec's autosampler disc system

    Easy to use auto sampler

    A smart auto sampler disc system gives you batch handling flexibility.

    Up to three discs can be loaded simultaneously allowing up to 117 samples to be analysed unattended.

  • Three stage water filtering system
    Three stage water filtering system

    Three-stage water filtering system

    The unique three-stage water removal system increases the lifetime of the water trap-packing many times.

    The by-product water (H2O) is separated from the gas mixture by three water traps – F1, F2 and F3. F1 is a water condensation tube. F2 is a Perma Pure gas membrane. F3 is a silica gel water trap.

Dumatec™ 8000 - Automated Dumas Analysis

How to manage reference test data for NIR calibration faster and more cost effectively. This video animation shows how a Dumas (nitrogen) analysis instrument can be connected to a network so that data can be accessed and managed from anywhere. Not only, does it save time, it also cuts the risk of human error by avoiding manual data entry.

Webinar: Dumas vs. Kjeldahl – Which method should you choose?

This webinar highlights the main features of the two methods, providing guidance about what to consider when implementing Dumas as the routine nitrogen/protein method in the laboratory. In order to watch this webinar you need to submit the requested information and join our FOSS knowledge community. We will process your personal data in accordance with our Privacy Policy.

Something went wrong!

Sorry, we were not able to send your form.

Technical specification

Technical
Technical
Technical Specifications
Performance data at 230 V

Autosampler capacity

 Three discs with 39 positions in each; a total of 117 positions
Analysis time

2 – 5 min, depending on the sample substance and weight
Sample weight 0,5 mg – 300 mg (typically 100 mg). Samples with low organic matter up to 1000mg

Measuring range: Nitrogen

Minimum <0,01 mg
Maximun 50 mg
Relative standard deviation
 <0,5 % with 150 mg test substance (EDTA)
Recovery
 >99,5%
Detection limit 0,003 mg N

Installation requirements

Power supply

220 – 240 VAC, 50/60 Hz
Helium Supply
 Quality grade 5.0 (99.999%)
Oxygen supply Quality grade 5.0 (99.999%)
Compressed air or industrial nitrogen (auto sampler drive)
 Quality grade 2.6 (99.6%), without dust, oil and water vapour, dew point below -40C
Inlet pressure helium
 3 bar
Inlet pressure oxygen
 3 bar
Inlet pressure compr.air/nitrogen
 4 bar

Storage temperature

 5 – 40 C
Use
 Indoor
Current
 6A
Transient overvoltage
 Category II (according to IEC/EN 60364
Pollution degree
 2 (according to IEC 664-1)
Protection class
 IP20
Fuse rating
 T 6A h 250 v
Technical specification
Weight net 65 kg

Dimensions: (W×D×H)

 800 x 450 x 590 mm (710 with autosampler)
Digital balance

Precision 0.1 mg (calibration starts 5 mg abs Nitrogen)
0.01 mg or better (calibration starts 1 mg abs Nitrogen)
Temperature range

Combustion furnace 400 - 1100°C
Reduction furnace 400 - 1100°C
Desorption furnace 50 – 350 °C
Requirements for PC

CPU
 Intel Core i5 or higher
RAM Minimum 4 GB
Free Hard disc space
 Minimum 20 GB
Operating system
 Windows 7  - 32/64 bit
Additional software
 Microsoft excel
Ports
 Minimum two USB 2.0
Screen
 Minimum 19 inch monitor
Printer
 A4 printer (optional)
